Can You See a Kidney Stone on X Ray? A Complete Guide

Kidney stones cause excruciating pain and affect millions of people worldwide. When you’re doubled over in agony, the first question that comes to mind is: “Can you see a kidney stone on x ray?” Medical imaging helps doctors diagnose kidney stones, but not all imaging methods work equally well.

X-Rays and Kidney Stone Detection

Standard X-rays can detect some kidney stones, but they miss many others. The visibility of stones on X-rays depends entirely on their composition.

Stones visible on X-ray:

• Calcium oxalate stones (most common type)
• Calcium phosphate stones
• Cystine stones

Stones invisible on X-ray:

• Uric acid stones (completely transparent)
• Some small calcium stones
• Xanthine stones

About 85% of kidney stones contain calcium and show up on X-rays. However, 15% remain invisible, which means X-rays alone aren’t reliable for ruling out kidney stones.

What Medical Tests Detect Kidney Stones?

CT Scan (Gold Standard)

CT scans detect nearly 100% of kidney stones regardless of size or composition. The scan takes detailed cross-sectional images of your abdomen and pelvis, revealing stones as small as 2-3 millimeters.

Advantages:

• Detects all stone types
• Shows exact location and size
• Reveals complications like blockages
• Fast procedure (5-10 minutes)

Disadvantages:

• Higher radiation exposure
• More expensive than X-rays
• May require contrast dye

Ultrasound

Ultrasound uses sound waves to create images of your kidneys and urinary tract. It’s completely radiation-free and safe during pregnancy.

Advantages:

• No radiation exposure
• Safe for pregnant women
• Can detect blockages
• Shows kidney swelling

Disadvantages:

• Misses small stones
• Can’t detect stones in the ureter
• Operator-dependent accuracy

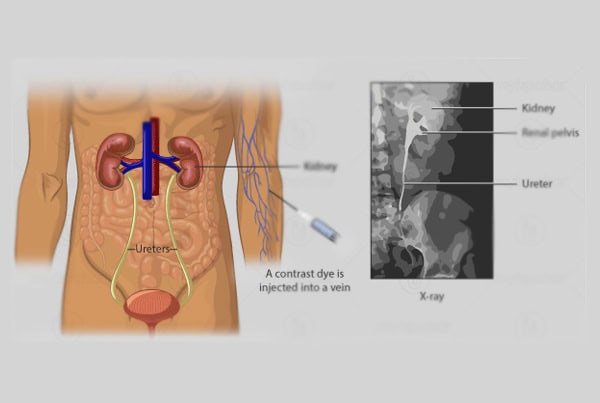

IVP (Intravenous Pyelogram)

This older test involves injecting contrast dye into your bloodstream, then taking X-rays as the dye travels through your urinary system.

Advantages:

• Shows urinary tract function
• Detects blockages
• Less expensive than CT

Disadvantages:

• Requires IV contrast
• Risk of allergic reactions
• Takes longer than CT scan
• Being replaced by CT scans

Which Test Is Best for Kidney Stones?

CT scan without contrast is the gold standard for kidney stone diagnosis. Emergency departments and urologists prefer CT scans because they:

• Detect stones that other tests miss
• Provide precise measurements
• Show stone density (helps predict treatment success)
• Reveal alternative diagnoses if no stone is present

Most medical guidelines recommend CT scans as the first-line imaging test for suspected kidney stones in adults.

How to Read Your X-Ray Report for Kidney Stones?

When you get your X-ray results, look for these key terms and findings:

Normal Report Language

• “No acute findings”
• “No radiopaque calculi seen”
• “Clear lung fields, normal heart size”
• “No obvious stones visualized”

Positive Findings

• “Radiopaque density in the right kidney”
• “Calcification overlying the left ureter”
• “Stone measuring X mm in the renal pelvis”
• “Opacity consistent with nephrolithiasis”

Key Areas Radiologists Examine

• Kidneys: Look for round or oval bright spots
• Ureters: Check the path from kidney to bladder
• Bladder: Examine for stones at the bottom of the pelvis
• Bowel gas: Can obscure stones (mentioned if present)

Size Measurements

• Stones under 5mm: Often pass naturally
• 5-10mm stones: May need intervention
• Stones over 10mm: Usually require treatment

Location Descriptions

• “Upper pole” = top of kidney
• “Lower pole” = bottom of kidney
• “Renal pelvis” = central collecting area
• “Ureterovesical junction” = where ureter meets bladder

What If Your X-Ray Is Normal But You Have Symptoms?

A normal X-ray doesn’t rule out kidney stones. Many stones don’t show up on standard X-rays, especially:

• Uric acid stones (15% of all stones)
• Very small calcium stones
• Stones obscured by bowel gas or bone

If you have classic kidney stone symptoms (severe flank pain, blood in urine, nausea) but a normal X-ray, your doctor will likely order a CT scan or ultrasound.

Preparing for Kidney Stone Imaging

Before Your X-Ray

• No special preparation needed
• Wear comfortable clothes without metal
• Remove jewelry and belts
• Tell the technician if you’re pregnant

Questions to Ask Your Doctor

• Should I have a CT scan instead?
• What if the X-ray is normal, but I still have pain?
• How quickly will I get results?
• What’s the next step if they find a stone?

Frequently Asked Questions

Can kidney stones hide on X-rays?

Yes, uric acid stones and some small calcium stones don’t show up on X-rays. About 15% of stones are “radiolucent” (invisible on X-ray).

How accurate are X-rays for kidney stones?

X-rays detect about 85% of kidney stones. CT scans are nearly 100% accurate.

What does a kidney stone look like on X-ray?

Kidney stones appear as bright white spots or densities, usually round or oval-shaped. They stand out against the darker background of soft tissues.

Can bowel gas hide kidney stones on X-ray?

Yes, intestinal gas can obscure stones, especially those in the lower ureter. This is why radiologists sometimes recommend repeat films or different imaging.

Do all hospitals use X-rays for kidney stones?

Most emergency departments now use CT scans as the first test because they’re more reliable. Some urgent care centers still start with X-rays.

How long does it take to get X-ray results?

Emergency department X-rays are usually read within 30-60 minutes. Outpatient X-rays may take several hours to a few days.

Should pregnant women get X-rays for kidney stones?

Pregnant women should have ultrasound first to avoid radiation exposure. X-rays are only used if ultrasound is inconclusive and the information is critical.

Can kidney stones move between X-rays?

Yes, stones can move down the ureter between imaging studies. This is why location descriptions in reports are important.

What’s the smallest stone visible on X-ray?

Most X-rays can detect stones 3-4mm or larger, but this depends on the stone’s density and location.

Do kidney stone X-rays hurt?

No, X-rays are painless. You simply lie on a table while the machine takes pictures. The hardest part is staying still for a few seconds.

When to Seek Emergency Care?

Get immediate medical attention if you experience:

• Severe flank or back pain
• Blood in your urine
• Nausea and vomiting with pain
• Fever with urinary symptoms
• Inability to urinate

Don’t wait for imaging results if you have severe symptoms. Emergency departments can provide pain relief while diagnostic tests are completed.

The Bottom Line

X-rays can detect many kidney stones, but they’re not perfect. CT scans provide the most accurate diagnosis, catching stones that X-rays miss. If you have kidney stone symptoms, discuss with your doctor which imaging test is right for your situation. The goal is getting the right diagnosis quickly so you can get appropriate treatment and pain relief.
